Speed Door Solutions 24 Hour Emergency Service

Specializing in High Speed Performance Commercial & Industrial Doors.

Quality Without Compromise...

High-Performance doors for Industrial, Commercial, Pharmaceutical and Cold-Storage Environments. Whether they’re rolling, folding or sliding doors, high-performance doors are our only business.

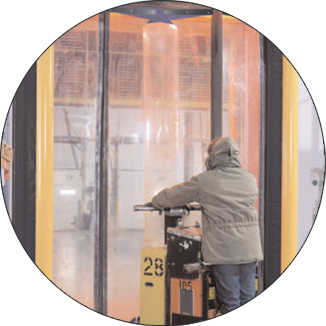

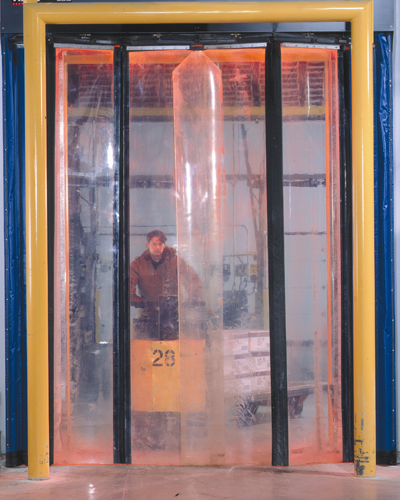

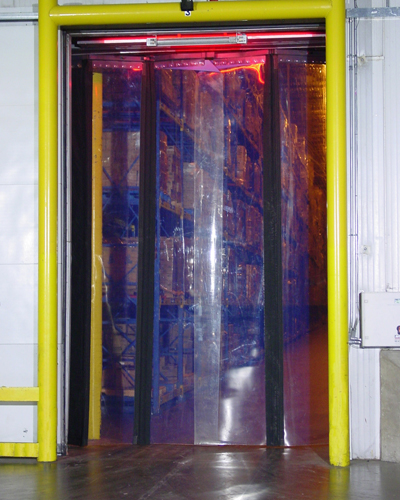

Fast-Fold Freezer
Fast-Fold Freezer
The Reliable Cold Remedy.

The Fast-Fold Freezer door gave birth to the idea of high-speed doors in cold storage environments. It was the first to be used in cooler and freezer applications, and its time-tested durability and dependability have made it the best selling high-speed door in the cold storage market.

Your choice of three different defrost systems assures your Fast-Fold Freezer door will remain virtually frost free, whatever the nature of your cold storage application.

Fast - Opens at up to 84 inches per second.

Threshold Safety - OWith its full height, clear PVC panels, the Fast-Fold Freezer provides great visibility and added safety for interior applications where fork trucks and other equipment are crossing the threshold in both directions, crossing the door’s traffic lane, or both.

Energy Efficient - Insulated head and side frames, along with sealed panel assembly, combine with fast opening and closing speeds to reduce energy loss.

Frost Free - Three different defrost system options help reduce frost buildup.

Durable, Low Maintenance - Engineered to last million cycles with minimal maintenance.

Takes a Hit - Withstands fork truck impact with little or no damage, virtually eliminating door down time.

Specifications:

Subject to change.

Model:

Rytec® Fast-Fold® Freezer Model FF6RGS.

Standard Size:

Up to 12 feet wide and 16 feet high.

Door Panel:

Four center panels are constructed of 3/8 inch thick, low temperature Puralon, ™ capable of withstanding temperatures as low as -40° F. Panels 1 and 6 are insulated. Four center panels are mounted on four center suspended rotor arms. Insulated panels optional.

Side Frames:

Side frames and covers made of 16 gauge galvanized sheet metal welded to structural angle. Exposed metal surfaces chemically cleaned then painted with a two component acrylic urethane top coat. Door is fully modular with no welding required for installation.

Door Seal:

Inner door panels held together by Velcro® seams. Outer panels heatsealed. Optional overlapping panels with rope tie connectors available.

Roller System:

Door equipped with Tec- Track™ I roller system with minimum of 16 model GS 1-7/8 inch Ryflex™ floating rollers. Roller assembly deflects up to 7° degrees in the vertical plane in order to maintain full roller surface bearing contact track. Rollers are carburized, hardened and fully sealed with ball bearings. Optional BFGS roller available.

Roller Track:

Roller track is constructed of cold-formed alloy steel, integrallymounted to the face of a 6 inch structural channel.

Drive System:

Three-phase, variable speed AC Drive provides soft acceleration and deceleration. Independent opening and closing speeds provide flexibility to accommodate any application. Motor and electrical components are factory wired to junction boxes in the head assembly.

Travel Speed:

Opens at up to 84 inches per second.

Defrost System:

Three defrost systems available:
• Patented Tec-Light™ system
• Tec-Lights™ with unheated blower
• Heated blower system

Electrical Controls:

System 3™ controller is housed in a NEMA 4 rated enclosure with factory set parameters. Self-diagnostic features and a two-line, 32-character LCD display in English or Spanish provide quick and straightforward installation and control adjustments. Programmable inputs and outputs accommodate special control applications without additional electrical components. Three-phase fused disconnect is standard.

Warranty:

One year limited warranty on materials and workmanship. One year limited warranty on door track and roller system. Ten year warranty on door track and roller system with BFGS hardware.
