Specifications:

Subject to change.

Model:

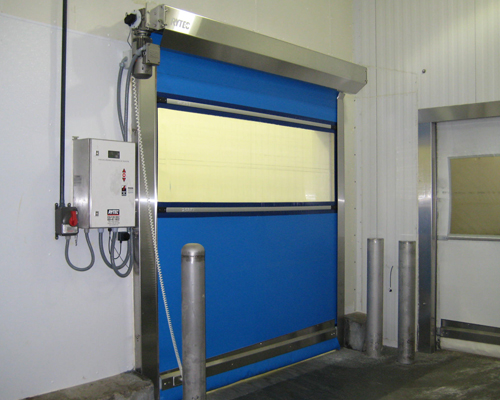

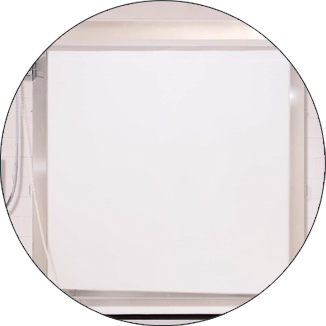

Rytec® Clean-Roll® Door UL® 2128 certified.

Standard Size:

Up to 12 feet wide by 12 feet high.

Door Panel:

USDA and FDA compliant, white or blue panel material with optional heat sealed window.

Side Frames:

Fully bolt together side frames made from 304 stainless, with 2B finish. Patented side column covers, made of 304 stainless steel with #4 finish, can be easily removed to facilitate cleaning. One set of NEMA 4X thru-beam electric photo eyes internally mounted in side frame, one set fieldinstalled.

Optional Manual Release:

Optional counterbalanced manual release system. Includes two counterweights and brake release.

Head Assembly:

Patented stainless steel roll drum with stainless piano hinge to connect fabric. No excess fabric on drum when door is in the closed position, reducing bacteria build-up. Patented drum designed to rotate an additional 120° revolution to allow complete cleaning of drum and fabric. Patented drip guard shrouds the roll drum and panel material. Hinged drip guard lifts up to facilitate cleaning of drum and panel material. Drip guard’s integrated gutter prevents liquid contaminants from dripping into traffic pathway.

Bottom Bar:

Clean-Set, Break-Away tabs and stainless steel bottom bar release in either direction without damage to the door. Standard dual cut-off switches shut off motor when bottom bar is impacted. Pneumatic, dualchamber reversing edge is standard. Patented, sloped bottom bar prevents liquid contaminants from dripping into traffic pathway. No exposed junction box on bottom bar.

Travel Speed:

Opens at up to 50 inches per second.

Drive System:

Three-phase, variable speed AC Drive with foodgrade, washdown motor provides soft acceleration and deceleration. Independent opening and closing speeds provide flexibility to accommodate any application. Motor and electrical components are factory wired to junction boxes in the head assembly.

Electrical Controls:

System 3 controller is housed in a NEMA 4 rated enclosure with factory set parameters. Self-diagnostic features and a two-line, 32-character LCD display in English, Spanish or French provide quick and straightforward installation and control adjustments. Programmable inputs and outputs accommodate special control requirements without the need for additional electrical components.

Warranty:

One year limited warranty on materials and workmanship.
