Speed Door Solutions 24 Hour Emergency Service

Specializing in High Speed Performance Commercial & Industrial Doors.

Quality Without Compromise...

High-Performance doors for Industrial, Commercial, Pharmaceutical and Cold-Storage Environments. Whether they’re rolling, folding or sliding doors, high-performance doors are our only business.

Wynd Star
Wynd Star

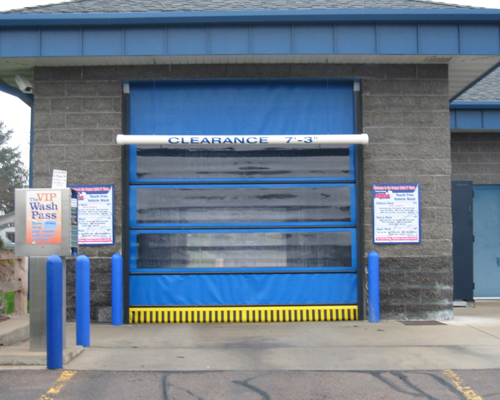

Simply Better Car Wash Doors.

The Wynd Star model MT door was developed specifically for harsh car wash environments. With corrosion-resistant materials and a Break-Away design, it is engineered for high-volume car wash applications that demand low-maintenance doors. The design eliminates pneumatics, cables, springs, hinges, belts, drums, pulleys and other high maintenance parts for years of trouble-free operation.

Industrial Strength Construction:
• Corrosion-resistant composites
• No aluminum to bend or corrode
• Break-Away Design

Powerful, Long Lasting Operator:
• 25% more power than typical operator
• High duty cycles without additional cooling fans
• Exclusively available at Rytec

Independent Door Controller:
• Floor level operation
• Relay logic for easy set-up and troubleshooting

Heavy-Duty Door Panel:
• Tough, tear resistant vinyl
• UV and chemical resistant
• Flexible at low temps
• No polycarbonate to crack or cloud

Easy Chain Hoist in Case of Power Failure:
• Permits full opening and closing of door in case of power failure
• No weights, ropes or springs required

Expandable for Ancillary Devices:
• Additional inputs/outputs standard
• 24 VAC power supply requires no additional power supply

UL-Recognized Components:
• Meets rigorous safety standards
• dds third-party testing credibility for compliance and electrical inspections

Easy to Install and Easy to Maintain:
• Simple construction for easy installation
• Fewer moving and durable parts means less maintenance

Specifications:

Subject to change.

Model:

Wynd Star Model MT.

Standard Size:

Up to 14 feet wide by 12 feet high.

Electrical Requirements:

3-phase options include 208, 230, 460 or 575 VAC.

Construction:

• Rigid compostie side guides.
• Flexible plastic bottom edge.
• Jamb-Wrap design provides a tight seal around the opening.

UL Compliance:

UL-recognized operator and controller.

Maintenance:

• Simple to maintain, easy to clean.
• All panels and seals replaceable.

Operator:

• 0.60 HP direct drive electric.
• 44.25 ft/lbs torque output.
• Opens and closes at 20 inches per second.
• Designed for high-cycle applications.

Operator Safety:

• Integrated safety brake.
• Safety run timer.

Controller:

• NEMA 4X relay logic.
• 3-button station (open/close/stop).
• Pre-wired with standard 10 ft. cable length for installation.
• Off-board control panel configuration allows for remote mounting.
• Additional inputs/outputs and 24 VAC for ancillary devices.

Safety:

Soft panel and bottom edge, safety striped edge and photoeyes.

Manual Operation:

Open/Close chain hoist - no crank

Door Panel Design:

• Break-Away design.
• After accidental impact the door automatically resets upon next opening.

Door Seals:

• Replacable side brush seals.
• Dynamic "contactless" top seal, won't scratch or wear on the door panel.

Other Standard Features:

• Protective Roll and Motor Cover.
• Vision panels.
• Conveyor cut-outs.
• Interior or exterior mount.
• Right hand drive (left hand standard).

Additional Options:

Consult Factory.

Warranty:

One Year.
