Specifications:

Subject to change.

Model:

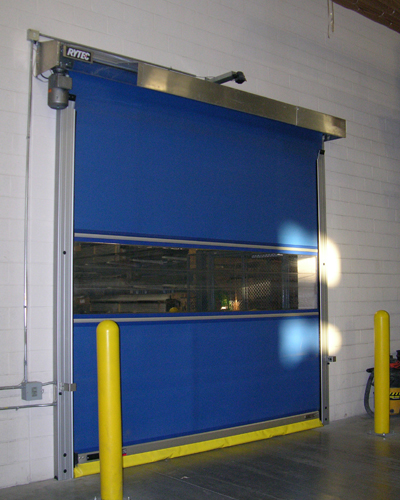

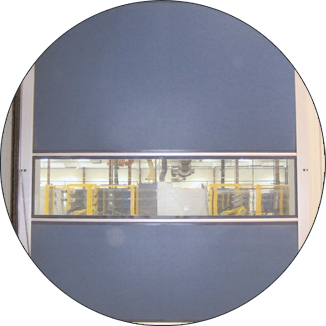

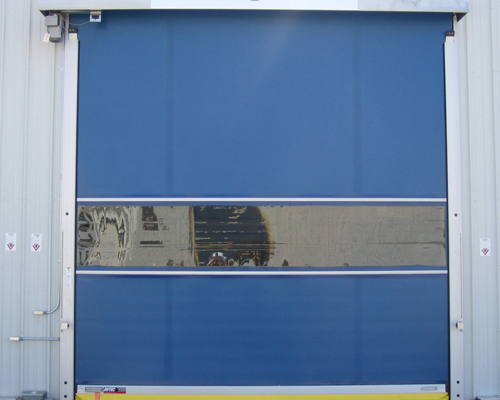

Rytec PredaDoor Door.

Standard Size:

Up to 16 feet wide by 15 feet high.

Door Panel:

Standard 32 ounce replaceable vinyl sections with up to four wind ribs and one full-width replaceable PVC vision panel. Options include 2-ply or 3-ply Rilon, USDA compliant material, and screen material. Consult factory for color options.

Side Frames:

Fully bolt together anodized aluminum construction with full-height weatherseal to seal against panel material. Dual electric photo eyes are standard.

Bottom Bar:

Quick-Set, Break-Away tabs and extruded aluminum bottom bar releases in either direction without damage to the door. Standard dual cutoff switches shut off motor when bottom bar is impacted. Pneumatic, dualchamber reversing edge is standard. No exposed junction box on bottom bar. Vinyl loop hugs floor contour for tight seal. Bottom bar preassembled on doors at factory.

Drive System:

Three-phase, variable speed AC Drive provides soft acceleration and deceleration. Independent opening and closing speeds provide flexibility to accommodate any application.

Electrical Controls:

System 3 controller is housed in a NEMA 4 rated enclosure with factory set parameters. Self-diagnostic features and a two-line, 32-character LCD display in English, Spanish or French provide quick and straightforward installation and control adjustments. Programmable inputs and outputs accommodate special control requirements without the need for additional electrical components.

Travel Speed:

Opens at up to 50 inches per second.

Warranty:

One year limited warranty on materials and workmanship. Three year limited warranty on 2-ply Rilon panel material.
