Specifications:

Subject to change.

Model:

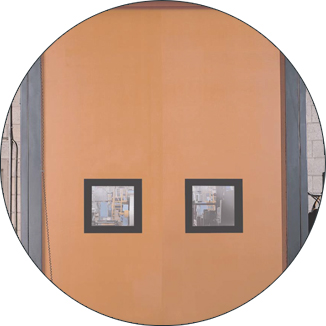

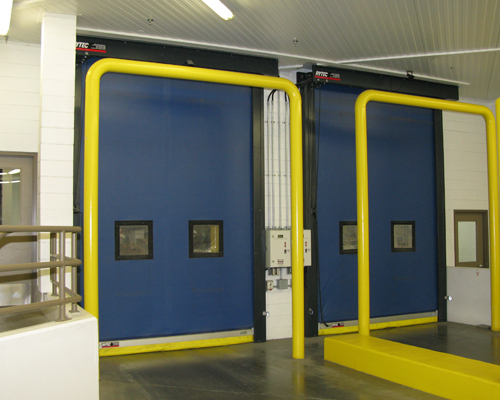

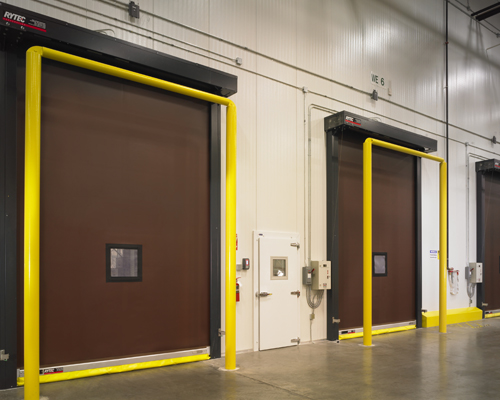

Rytec Turbo-Seal Door.

Standard Size:

Up to 12 feet wide by 16 feet high.

Door Panel:

2-ply, 3-ply Rilon™ or USDA compliant material with optional, replaceable PVC windows. Optional wind ribs provide stability in high negative pressure environments. Contact factory for color options.

Side Frames:

Fully bolt together, reinforced side frames with full-height vinyl weatherseal to seal against panel material. Dual electric photo eyes are standard. Optional light safety curtain is available.

Counterbalance:

Dual guided counterweights custom-sized to provide highspeed operation with less stress on the drive system.

Bottom Bar:

Quick-Set, Break-Away extruded aluminum bottom bar capable of releasing in either direction without damage to bar, safety reversing edge or side covers. Opening of side covers is not required to reset bottom bar. Pneumatic, dual-chamber reversing edge standard on bottom bar. Standard dual cut-off switches shut off motor when bottom bar is impacted. No exposed junction box on bottom bar. Vinyl loop hugs floor contour for tight seal. Optional padded bottom bar available.

Drive System:

Three-phase, variable speed AC Drive provides soft acceleration and deceleration. Independent opening and closing speeds provide flexibility to meet any application.

Electrical Controls:

System 3® controller housed in a NEMA 4 rated enclosure with factory set parameters. Self-diagnostic features and a two-line, 32-character LCD display in English, French or Spanish provide quick and straightforward installation and control adjustments. Programmable inputs and outputs accommodate special control requirements without the need for additional electrical components.

Travel Speed:

Opens at up to 100 inches per second.

Warranty:

One-year limited warranty on materials and workmanship. Lifetime warranty on door counterweights. Three-year limited warranty on 2-ply Rilon panel material.
